MEAN WELL RSP-500-12 DC 500W/12V/42A
Product details
| Management number | 208625470 | Release Date | 2026/03/22 | List Price | $34.14 | Model Number | 208625470 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

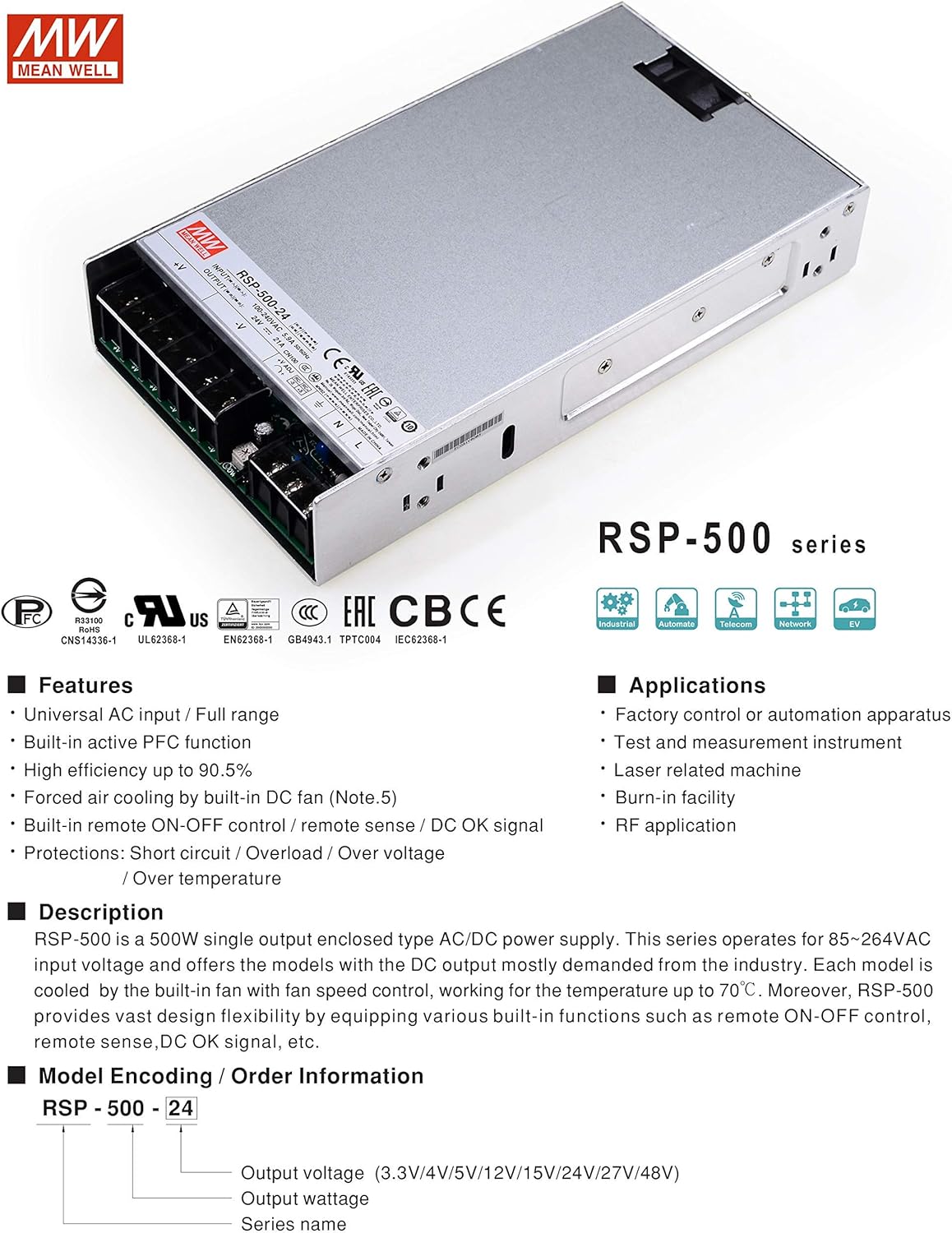

The RSP-500-12 industrial switching power supply provides a stable 12V DC output with a current capacity of 41.7A and a power rating of 500.4W, designed for high-performance applications. The power supply has a 85-264VAC universal input (compatible with 120-370VDC), supports global voltage standards, and has a frequency range of 47-63Hz. Active Power Factor Correction (PFC) technology is used to achieve energy-saving operation with a typical efficiency of up to 88% (PF>0.95 at 230VAC and PF>0.98 at 115VAC). The precision-regulated output maintains ±1% voltage accuracy, ±0.3% line regulation, and ±0.5% load regulation. Advanced protection mechanisms cover overvoltage and overtemperature conditions. Technical highlights: ripple noise <150mVp-p, hold time 18ms at full load, cold start surge current 20A/115VAC (40A/230VAC), leakage current <2mA. Certified safety features include reinforced insulation. Ideal for industrial automation, telecommunications systems and LED applications that require a reliable 12V power supply. The compact chassis design enables it to be flexibly deployed in a control cabinet or equipment rack.
- 500W 12V
- UNIVERSAL AC INPUT
| Item Weight | 2.73 pounds |
|---|---|
| Manufacturer | MEAN WELL |
| Product Dimensions | 9.06 x 4.88 x 1.59 inches |
