CY PCI-E Express 4X & Mini Displayport 1.4 Input to Dual 10Gbps USB 3.1 Type-C USB-C & 4K 60hz Output Desktop Graphics Expansion Card Adapter ASM3142
Product details
| Management number | 208554424 | Release Date | 2026/03/22 | List Price | $18.80 | Model Number | 208554424 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 1) Chipset: ASM3142 supports the new feature of USB3.1 Gen2, named Multiple INs to achieve fully utilization rate of 10Gbps data rate, taking advantage of the available bandwidth of USB3.1 Gen2 bus, offering a highly integrated, application-specific design.

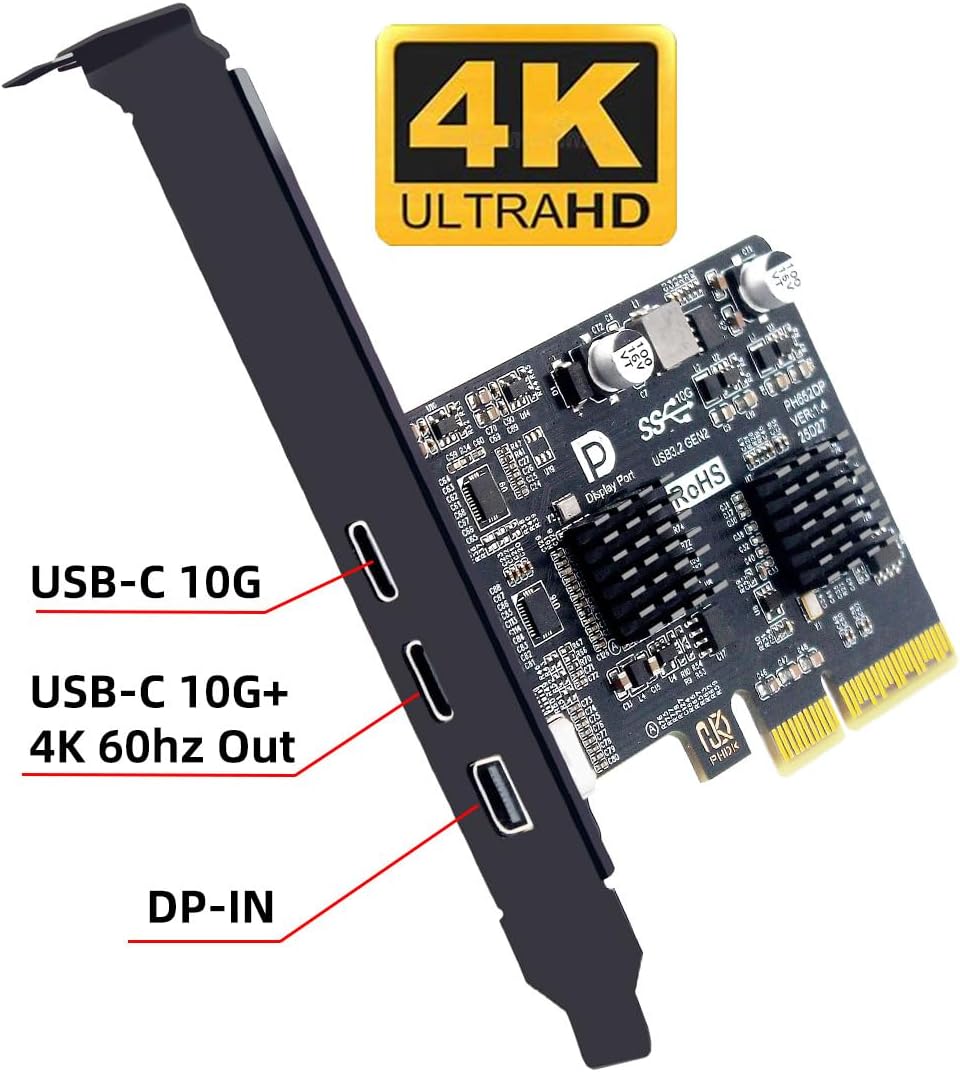

- 2) Need to connect Mini DisplayPort Mini-DP 4K input from Graphics Card, Then you can get the 4K video from Type-C card output. Compatible with Displayport DP or Mini DP or Thunderbolt2 video source to Type-C USB-C sink output.
- 3) 10Gbps Data transfer: Support 10Gbps data rating and 5V power. Compliant with USB Base Specification 3.1/3.0, Output USB3.0 interface and Type-C/Type-E interface. Compliant with USB 3.0 Super-Speed (10/5Gbps), USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed (1.5Mbps).
- 4) No need any extra Power Supply,build in Self-Powered IC. Compatible with Windows 7, 8, 10, 11 and Mac OS 10.8.2 and above. Win 10, 11, Mac OS, and Linux does not need any driver.It requires installing a driver when operating on Windows 7.
- 5) The connector can transfer the usb 3.1/3.0 data and power, Also can connect usb-c video device. Type C connector is the new design for USB 3.1,Reversible Design for Type C connector,Reversible plug orientation Cable direction,Support 5V/3A power charging.
| Item Weight | 4.2 ounces |
|---|---|
| Manufacturer | CY |
| Item model number | UC-083-DP-HX |
| Package Dimensions | 6.06 x 4.17 x 1.34 inches |
